Traditional ceramic plate

      We are the largest traditional ceramic plate production base in China.The traditional ceramic plate adopts the technology of dry pressing, which has high strength.The waterway is parallel waterway, which ensures the process stability and water uniformity.Normally used in filtration processes with special requirements for strength.

New type ceramic plate

      Through cooperation with domestic well-known universities, the new ceramic plate has changed the filtration principle compare with the traditional ceramic filter plate, using the new filtration principle to provide an effective solution for all kinds of complex materials,high capacity, low moisture.

TECHNICAL FEATURES

    ① We use integral molding method, instead of any kinds of binder. That gains higher mechanical strength(≤0.6MPa).
    ② High open porosity(≥46%), uniform pore size and size distribution, high filtration efficiency, low vacuum energy consumption.
    ③ Hjgh acid and alkaline resistance.
    ④ Mixture variety, filter precision coverage range from 1.0-50.0UM. Fully meet the needs of customers.
    ⑤Low filter elements replacement costs.
    ⑥10-20 times less power consumption.

CERAMIC FILTER DISC ADVANTAGES

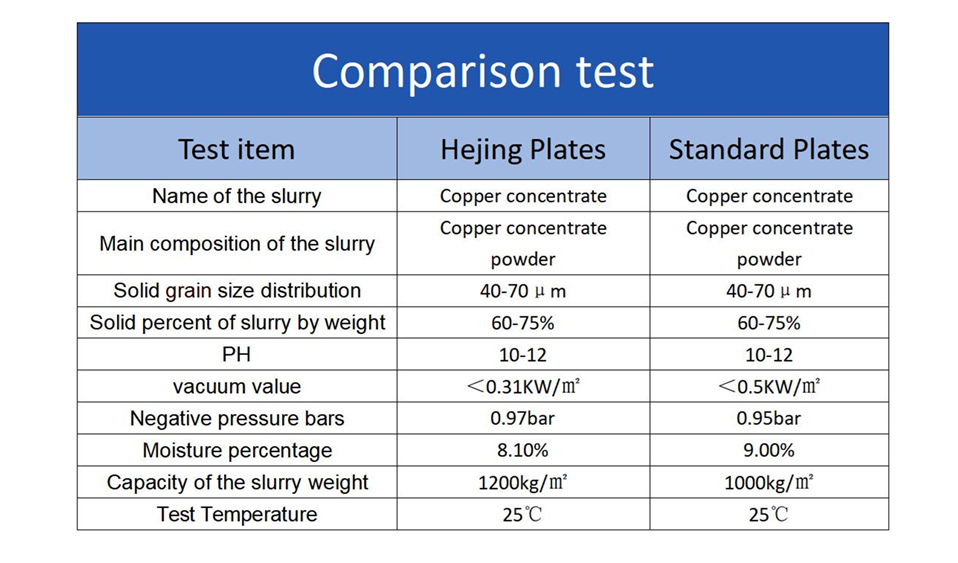

    Hejing offers a versatile range of test filtration services. After each test the client receives a detailed report,Meanwhile,our products have several advantages:

High Water flux

    By using pore size technology, the open porosity of the plate is around 50%. Special integral modeling method results uniform structures. As a result, there will be more liquid go through the surface at the same time, so that the moisture will be lower(7-9%).

Uniform Structure of Surface

Maximum hydraulic capacity through pore size technology.

High Thermal Resistance And Strength

We use integral molding method, instead of any kinds of binder. That gains higher mechanical strength(≤0.6MPa).

Stable Product Quality

The company has several fully automated kilns, it does well in preventing non-conforming product from human factors. Because of stable sintering temperature, product can offer high vacuum protection effect.(0.98bar/sea level)
